kubernetes安装(containerd)

概念介绍

  • cri (Container runtime interface)

  • containerd

    • containerd is an industry-standard container runtime with an emphasis on simplicity, robustness and portability.
    • containerd完全支持运行容器的的CRI运行时规范。
    • cri在containerd1.1以上的版本的原生插件。它内置于containerd并默认启用。
  • cri-o

    • OCI-based implementation of Kubernetes Container Runtime Interface.
    • kubernetes为了兼容cri和oci孵化了项目cri-o。为了架设在cri和oci之间的一座桥梁。由此cri-o既兼容cri插件实现又兼容oci的容器运行时标准。
  • oci (Open Container Initiative)

  • runc

    • runc is a CLI tool for spawning and running containers according to the OCI specification.
    • runc,是对于OCI标准的一个参考实现,是一个可以用于创建和运行容器的CLI(command-line interface)工具。

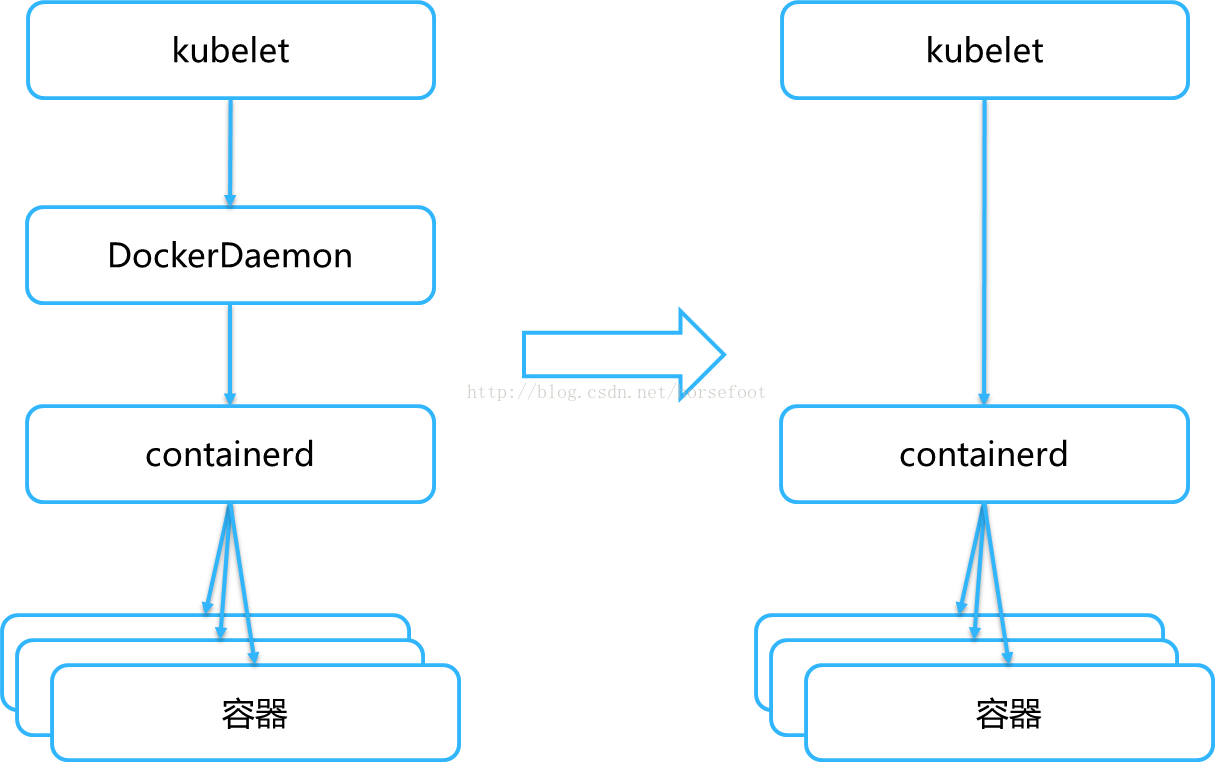

直接通过调用containerd来管理容器的α新特性。

/images/posts/706130851746.png

从上图中可以明显的看出来绕过docker,直接通过containerd管理容器,可以节省一个操作步骤,那么这样会带来很多好处:

1、 由于减少了一个操作步骤,提高了系统效率,并且系统更易于维护。

2、 取消了DockerDaemon,整个系统占用的资源更少了,可以给业务使用的资源变多了。

3、 不依赖DockerDaemon,整个系统更加开放。

4、 由于kubelet并没有变化,那么不影响以前用户使用。

系统初始化

请参考dockershim运行时安装的初始化文章

kubernetes部署安装

kube-proxy开启ipvs的前置条件

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
modprobe br_netfilter

cat > /etc/sysconfig/modules/ipvs.modules <<EOF
#!/bin/bash
modprobe -- ip_vs
modprobe -- ip_vs_rr
modprobe -- ip_vs_wrr
modprobe -- ip_vs_sh
modprobe -- nf_conntrack_ipv4
EOF
chmod +x /etc/sysconfig/modules/ipvs.modules  && bash /etc/sysconfig/modules/ipvs.modules && lsmod && grep -e ip_vs -e nf_conntrack_ipv4

安装containerd软件

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
yum -y install yum-utils device-mapper-persistent-data lvm2

yum-config-manager \
--add-repo \
http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo

yum update -y && yum install -y containerd
systemctl restart containerd && systemctl enable containerd
mkdir -p /etc/containerd
containerd config default > /etc/containerd/config.toml
[root@drbd2 ~]# grep image /etc/containerd/config.toml
    sandbox_image = "registry.aliyuncs.com/google_containers/pause:3.1"
注意将sandbox镜像改为阿里云的地址

配置私有仓库

配置文件参考信息: https://github.com/containerd/cri/blob/release/1.4/docs/registry.md

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
/etc/containerd/config.toml
[plugins."io.containerd.grpc.v1.cri".registry]
      [plugins."io.containerd.grpc.v1.cri".registry.mirrors]
         #默认仓库为docker.io
        [plugins."io.containerd.grpc.v1.cri".registry.mirrors."docker.io"]
          endpoint = ["https://registry-1.docker.io"]
        #新增的私有仓库,注意需要在hosts添加解析地址
        [plugins."io.containerd.grpc.v1.cri".registry.mirrors."harbor.gtmsh.com"]
          endpoint = ["https://harbor.gtmsh.com"]
      # 私有仓库配置
      [plugins."io.containerd.grpc.v1.cri".registry.configs]
      # harbor.gtmsh.com仓库的tls配置,insecure_skip_verify = true 为跳过tls配置
        [plugins."io.containerd.grpc.v1.cri".registry.configs."harbor.gtmsh.com".tls]
          insecure_skip_verify = true
      #私有仓库认证信息
      [plugins."io.containerd.grpc.v1.cri".registry.auths]
      #harbor.gtmsh.com私有仓库认证信息,注意这只是在crictl pull的时候会使用到的认证,k8s需要配置secret
        [plugins."io.containerd.grpc.v1.cri".registry.configs."harbor.gtmsh.com".auth]
          username = "admin"
          password = "Harbor12345"


systemctl restart containerd

安装kubeadm等软件

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
cat <<EOF > /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64/
enabled=1
gpgcheck=0
repo_gpgcheck=0
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg
https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF

yum -y install kubeadm-1.15.1 kubelet-1.15.1 kubectl-1.15.1
systemctl enable kubelet

使用crictl连接containerd

下一步我们使用crictl连接containerd。

  • 修改crictl的配置文件,在 /etc/crictl.yaml 写入以下内容:
1
2
3
4
runtime-endpoint: unix:///run/containerd/containerd.sock
image-endpoint: unix:///run/containerd/containerd.sock
timeout: 10
debug: false

这里注意runtime-endpoint 和image-endpoint 必须与/etc/containerd/config.toml中配置保持一致。

  • 验证一下cri插件是否可用
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
可以使用私有仓库
crictl  pull nginx:alpine
crictl  rmi  nginx:alpine
crictl  images

使用ctr命令导入镜像。不能使用私有仓库
ctr image import app.tar  #导入本地镜像
ctr images list|grep app  #查看导入的镜像

crictl images list|grep app #此命令也可查看

cri导入镜像命令(cri导入镜像),可能已经废弃:
 ctr cri load  images.tar
containerd导入镜像命令(containerd导入镜像):
 ctr images import images.tar

其中 crictl images 会列出所有的cri容器镜像。

到此我们的cri + containerd已经完成整合了。

修改kubeadm配置进行部署

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
kubeadm config print init-defaults > kubeadm-config.yaml
[root@drbd2 ~]# cat kubeadm-config.yaml
apiVersion: kubeadm.k8s.io/v1beta2
bootstrapTokens:
- groups:
  - system:bootstrappers:kubeadm:default-node-token
  token: abcdef.0123456789abcdef
  ttl: 24h0m0s
  usages:
  - signing
  - authentication
kind: InitConfiguration
localAPIEndpoint:
  advertiseAddress: 192.168.116.101 #这里需要修改
  bindPort: 6443
nodeRegistration:
  criSocket: /run/containerd/containerd.sock  #这里需要修改
  name: drbd2
  taints:
  - effect: NoSchedule
    key: node-role.kubernetes.io/master
---
apiServer:
  timeoutForControlPlane: 4m0s
apiVersion: kubeadm.k8s.io/v1beta2
certificatesDir: /etc/kubernetes/pki
clusterName: kubernetes
controllerManager: {}
dns:
  type: CoreDNS
etcd:
  local:
    dataDir: /var/lib/etcd
imageRepository: registry.aliyuncs.com/google_containers #这里需要修改
kind: ClusterConfiguration
kubernetesVersion: v1.15.1
networking:
  dnsDomain: cluster.local
  podSubnet: 10.244.0.0/16  #这里需要添加
  serviceSubnet: 10.96.0.0/12

--- #下面都需要添加
apiVersion: kubeproxy.config.k8s.io/v1alpha1
kind: KubeProxyConfiguration
featureGates:
  SupportIPVSProxyMode: true
mode: ipvs

修改kubelet配置和kubeadm安装时配置

在 kubelet配置文件 10-kubeadm.conf 的[Service] 结点加入以下配置:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
[root@drbd2 ~]# cat /usr/lib/systemd/system/kubelet.service.d/10-kubeadm.conf
# Note: This dropin only works with kubeadm and kubelet v1.11+
[Service]
Environment="KUBELET_KUBECONFIG_ARGS=--bootstrap-kubeconfig=/etc/kubernetes/bootstrap-kubelet.conf --kubeconfig=/etc/kubernetes/kubelet.conf"
Environment="KUBELET_CONFIG_ARGS=--config=/var/lib/kubelet/config.yaml"
#下面一行需要添加
Environment="KUBELET_EXTRA_ARGS=--container-runtime=remote --runtime-request-timeout=15m --container-runtime-endpoint=unix:///run/containerd/containerd.sock"
# This is a file that "kubeadm init" and "kubeadm join" generates at runtime, populating the KUBELET_KUBEADM_ARGS variable dynamically
EnvironmentFile=-/var/lib/kubelet/kubeadm-flags.env
# This is a file that the user can use for overrides of the kubelet args as a last resort. Preferably, the user should use
# the .NodeRegistration.KubeletExtraArgs object in the configuration files instead. KUBELET_EXTRA_ARGS should be sourced from this file.
EnvironmentFile=-/etc/sysconfig/kubelet
ExecStart=
ExecStart=/usr/bin/kubelet $KUBELET_KUBECONFIG_ARGS $KUBELET_CONFIG_ARGS $KUBELET_KUBEADM_ARGS $KUBELET_EXTRA_ARGS

1
2
由于安装containerd会安装3.10内核,这里重选选择下内核
grub2-set-default "CentOS Linux (4.4.238-1.el7.elrepo.x86_64) 7 (Core)" && reboot

初始化集群

1
kubeadm init --config=kubeadm-config.yaml  --experimental-upload-certs | tee kubeadm-init.log

部署网络

1
kubeadm init --config=kubeadm-config.yaml  --experimental-upload-certs | tee kubeadm-init.log

部署后注意事项

参考dockershim运行时安装的文章

测试

自定制python + flask + uwsgi镜像python:v2,以及数据镜像 test:v2,上传到私有仓库 的公共仓库(不需要账号密码的)

创建deploy资源

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
[root@con-mas ~]# cat hello-dp.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: helloworld
  name: helloworld
spec:
  replicas: 2
  selector:
    matchLabels:
      app: helloworld
  template:
    metadata:
      labels:
        app: helloworld
    spec:
      initContainers:
      - name: code
        image: harbor.gtmsh.com/library/test:v2
        volumeMounts:
        - name: main
          mountPath: /data/main
        command: ['sh','-c','cp /data/helloworld/* /data/main/ ']
        imagePullPolicy: IfNotPresent
      containers:
      - image: harbor.gtmsh.com/library/python:v2
        imagePullPolicy: Never
        name: helloworld
        ports:
        - containerPort: 5000
          protocol: TCP
        volumeMounts:
        - name: main
          mountPath: /data/main
        imagePullPolicy: IfNotPresent
      volumes:
      - name: main
        emptyDir: {}
kubectl apply -f hello-dp.yaml
[root@con-mas ~]# kubectl get pod
NAME                          READY   STATUS    RESTARTS   AGE
helloworld-55cbdf644d-dg62t   1/1     Running   0          13m
helloworld-55cbdf644d-tszg8   1/1     Running   0          13m
