informer源码分析

 收录于 kubernetes
   约 19653 字   预计阅读 40 分钟    次阅读

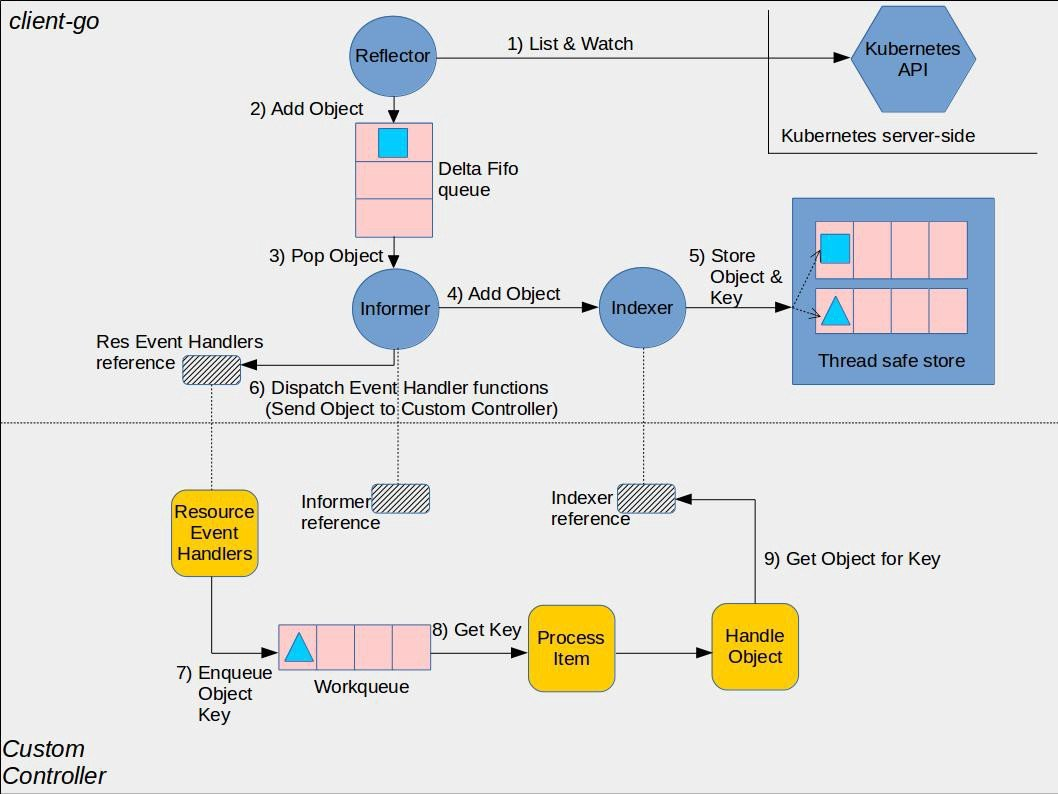

结构图

https://xieys.club/images/posts/116676748-efbbed00-a9d9-11eb-88ff-2b25120b59b3.png

源码分析

当我们需要利用client-go来实现自定义控制器时，通常会使用informerFactory来管理控制器需要的多个资源对象的informer实例

1
2
3
4
5
6
7
8
9

// 创建一个informer factory
kubeInformerFactory := kubeinformers.NewSharedInformerFactory(kubeClient, time.Second*30)
// factory已经为所有k8s的内置资源对象提供了创建对应informer实例的方法，调用具体informer实例的Lister或Informer方法
// 就完成了将informer注册到factory的过程
deploymentLister := kubeInformerFactory.Apps().V1().Deployments().Lister()
// 启动注册到factory的所有informer
kubeInformerFactory.Start(stopCh)
// 等待首次缓存同步
kubeInformerFactory.WaitForCacheSync(StopCh)

SharedInformerFactory结构

使用sharedInformerFactory可以统一管理控制器中需要的各资源对象的informer实例，避免同一个资源创建多个实例，这里的informer实现是shareIndexInformer NewSharedInformerFactory调用了NewSharedInformerFactoryWithOptions，将返回一个sharedInformerFactory对象

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

type sharedInformerFactory struct {
	client           kubernetes.Interface  //client
	namespace        string				   // 关注的namespace，可以通过WithNamespace Option配置
	tweakListOptions internalinterfaces.TweakListOptionsFunc
	lock             sync.Mutex
	defaultResync    time.Duration         //调用者传过来的时间
	customResync     map[reflect.Type]time.Duration  //自定义rsync时间

	informers map[reflect.Type]cache.SharedIndexInformer //针对每种类型资源存储一个informer，informer的类型是ShareIndexInformer
	startedInformers map[reflect.Type]bool 			// 每个informer是否都启动了
}
  • client: clientset，支持直接请求api中各内置资源对象的restful客户端集合
  • namespace: factory关注的namespace（默认All Namespace），informer中的reflector将只会listAndWatch指定namespace的资源
  • defaultResync: 用于初始化持有的shareIndexInformer的resyncCheckPeriod和defaultEventHandlerResyncPeriod字段，用于定时的将local store同步到deltaFIFO
  • customResync：支持针对每一个informer来配置resync时间，通过WithCustomResyncConfig这个Option配置，否则就用指定的defaultResync
  • informers：factory管理的informer集合
  • startedInformers：记录已经启动的informer集合

sharedInformerFactory对象的关键方法：

创建一个sharedInformerFactory

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20

// NewSharedInformerFactoryWithOptions constructs a new instance of a SharedInformerFactory with additional options.
func NewSharedInformerFactoryWithOptions(client kubernetes.Interface, defaultResync time.Duration, options ...SharedInformerOption) SharedInformerFactory {
	factory := &sharedInformerFactory{
		client:           client,			//clientset，对原生资源来说，这里可以直接使用kube clientset
		namespace:        v1.NamespaceAll,	//可以看到默认是监听所有ns下的指定资源
		defaultResync:    defaultResync,	//30s
		//以下初始化map结构
		informers:        make(map[reflect.Type]cache.SharedIndexInformer),
		startedInformers: make(map[reflect.Type]bool),
		customResync:     make(map[reflect.Type]time.Duration),
	}

	// 应用所有的option，比如限制名称空间、自定义过滤器之类的配置
	for _, opt := range options {
		factory = opt(factory)
	}

	return factory
}

启动factory下的所有informer

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

// Start initializes all requested informers.
func (f *sharedInformerFactory) Start(stopCh <-chan struct{}) {
	f.lock.Lock()
	defer f.lock.Unlock()

	for informerType, informer := range f.informers {
		if !f.startedInformers[informerType] {
			//直接起gorouting调用informer的Run方法，并且标记对应的informer已经启动
			go informer.Run(stopCh)
			f.startedInformers[informerType] = true
		}
	}
}

等待informer的cache被同步

等待每一个ShareIndexInformer的cache被同步，具体怎么算同步完成？

  • sharedInformerFactory的WaitForCacheSync将会不断调用factory持有的所有informer的HasSynced方法，直到返回true
  • 而informer的HasSynced方法调用的自己持有的controller的HasSynced方法（informer结构持有controller对象，下文会分析informer的结构）
  • informer中的controller的HasSynced方法则调用的是controller持有的deltaFIFO对象的HasSynced方法

也就说sharedInformerFactory的WaitForCacheSync方法判断informer的cache是否同步，最终看的是informer中的deltaFIFO是否同步了，deltaFIFO的结构下文将会分析

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22

// WaitForCacheSync waits for all started informers' cache were synced.
func (f *sharedInformerFactory) WaitForCacheSync(stopCh <-chan struct{}) map[reflect.Type]bool {
	informers := func() map[reflect.Type]cache.SharedIndexInformer {
		f.lock.Lock()
		defer f.lock.Unlock()

		informers := map[reflect.Type]cache.SharedIndexInformer{}
		for informerType, informer := range f.informers {
			if f.startedInformers[informerType] {
				informers[informerType] = informer
			}
		}
		return informers
	}()

	res := map[reflect.Type]bool{}
	for informType, informer := range informers {
		res[informType] = cache.WaitForCacheSync(stopCh, informer.HasSynced)
	}
	return res
}

cache.WaitForCacheSync(stopCh, informer.HasSynced)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20

func WaitForCacheSync(stopCh <-chan struct{}, cacheSyncs ...InformerSynced) bool {
	//wait.PollImmediateUntil，该方法为阻塞方法，直到函数返回true才结束往下继续执行
	err := wait.PollImmediateUntil(syncedPollPeriod,
		func() (bool, error) {
			for _, syncFunc := range cacheSyncs {
				if !syncFunc() {
					return false, nil
				}
			}
			return true, nil
		},
		stopCh)
	if err != nil {
		klog.V(2).Infof("stop requested")
		return false
	}

	klog.V(4).Infof("caches populated")
	return true
}

factory为自己添加informer

只有向factory中添加informer，factory才有意义，添加完成之后，上面factory的start方法就可以启动了

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

func (f *sharedInformerFactory) InformerFor(obj runtime.Object, newFunc internalinterfaces.NewInformerFunc) cache.SharedIndexInformer {
	f.lock.Lock()
	defer f.lock.Unlock()
	//根据对象类型判断factory中是否已经有对应informer
	informerType := reflect.TypeOf(obj)
	informer, exists := f.informers[informerType]
	if exists {
		return informer
	}
	//如果factory中已经有这个对象类型的informer，就不创建了
	resyncPeriod, exists := f.customResync[informerType]
	if !exists {
		resyncPeriod = f.defaultResync
	}
	 //没有就根据newFunc创建一个，并存在map中
	informer = newFunc(f.client, resyncPeriod)
	f.informers[informerType] = informer

	return informer
}

参数
obj: informer关注的资源如deployment{}
newFunc: 一个知道如何创建指定informer的方法，k8s为每一个内置的对象都实现了这个方法，比如创建deployment的ShareIndexInformer的方法

shareIndexInformer对应的newFunc的实现

client-go中已经为所有内置对象都提供了NewInformerFunc

以deployment为例，通过调用factory.Apps().V1().Deployments()即可为factory添加一个deployment对应的shareIndexInformer的实现，具体过程如下：

  • 调用factory.Apps().V1().Deployments()即会调用以下Deployments方法创建deploymentInformer对象
1
2
3
4
5

// Deployments returns a DeploymentInformer.
func (v *version) Deployments() DeploymentInformer {
	return &deploymentInformer{factory: v.factory, namespace: v.namespace, tweakListOptions: v.tweakListOptions}
}
  • 只要调用了factory.Apps().V1().Deployments()返回的deploymentInformer的Informer或Lister方法，就完成了向factory中添加deployment informer
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17

// deploymentInformer对象具有defaultInformer、Informer、Lister方法
// 可以看到创建deploymentInformer时传递了一个带索引的缓存，附带了一个namespace索引，后面可以了解带索引的缓存实现，比如可以支持查询：某个namespace下的所有pod

// 用于创建对应的shareIndexInformer，该方法提供给factory的InformerFor方法
func (f *deploymentInformer) defaultInformer(client kubernetes.Interface, resyncPeriod time.Duration) cache.SharedIndexInformer {
	return NewFilteredDeploymentInformer(client, f.namespace, resyncPeriod, cache.Indexers{cache.NamespaceIndex: cache.MetaNamespaceIndexFunc}, f.tweakListOptions)
}

// 向factor中添加dpeloyment的shareIndexInformer并返回
func (f *deploymentInformer) Informer() cache.SharedIndexInformer {
	return f.factory.InformerFor(&appsv1.Deployment{}, f.defaultInformer)
}

// 返回dpeloyment的lister对象，该lister中持有上面创建出的shareIndexInformer的cache的引用，方便通过缓存获取对象
func (f *deploymentInformer) Lister() v1.DeploymentLister {
	return v1.NewDeploymentLister(f.Informer().GetIndexer())
}
  • deploymentInformer的defaultInformer方法将会创建出一个shareIndexInformer
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39

// 可先看看下面的shareIndexInformer结构
func NewFilteredDeploymentInformer(client kubernetes.Interface, namespace string, resyncPeriod time.Duration, indexers cache.Indexers, tweakListOptions internalinterfaces.TweakListOptionsFunc) cache.SharedIndexInformer {
	return cache.NewSharedIndexInformer(
		// 定义对象的ListWatch方法，这里直接用的是clientset中的方法
		&cache.ListWatch{
			ListFunc: func(options metav1.ListOptions) (runtime.Object, error) {
				if tweakListOptions != nil {
					tweakListOptions(&options)
				}
				return client.AppsV1().Deployments(namespace).List(context.TODO(), options)
			},
			WatchFunc: func(options metav1.ListOptions) (watch.Interface, error) {
				if tweakListOptions != nil {
					tweakListOptions(&options)
				}
				return client.AppsV1().Deployments(namespace).Watch(context.TODO(), options)
			},
		},
		&appsv1.Deployment{},
		resyncPeriod,    //创建factory是指定的时间，如30s
		indexers,
	)
}

func NewSharedIndexInformer(lw ListerWatcher, exampleObject runtime.Object, defaultEventHandlerResyncPeriod time.Duration, indexers Indexers) SharedIndexInformer {
	realClock := &clock.RealClock{}
	sharedIndexInformer := &sharedIndexInformer{
		processor:                       &sharedProcessor{clock: realClock},
		indexer:                         NewIndexer(DeletionHandlingMetaNamespaceKeyFunc, indexers),
		listerWatcher:                   lw,
		objectType:                      exampleObject,
		resyncCheckPeriod:               defaultEventHandlerResyncPeriod,
		defaultEventHandlerResyncPeriod: defaultEventHandlerResyncPeriod,
		cacheMutationDetector:           NewCacheMutationDetector(fmt.Sprintf("%T", exampleObject)),
		clock:                           realClock,
	}
	return sharedIndexInformer
}

shareIndexInformer结构

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

type sharedIndexInformer struct {
	indexer    Indexer  	//informer中的底层缓存cache
	controller Controller	// 持有reflector和deltaFIFO对象，reflector对象将会listWatch对象添加到deltaFIFO，同时更新indexer cahce，更新成功则通过sharedProcessor触发用户配置的Eventhandler

	processor             *sharedProcessor  //持有一系列的listener，每个listener对应用户的EventHandler
	cacheMutationDetector MutationDetector  //可以先忽略，这个对象可以用来监测local cache是否被外部直接修改

	listerWatcher ListerWatcher				//deployment的listWatch方法
	objectType runtime.Object
	resyncCheckPeriod time.Duration
	defaultEventHandlerResyncPeriod time.Duration
	clock clock.Clock
	started, stopped bool
	startedLock      sync.Mutex
	blockDeltas sync.Mutex
}

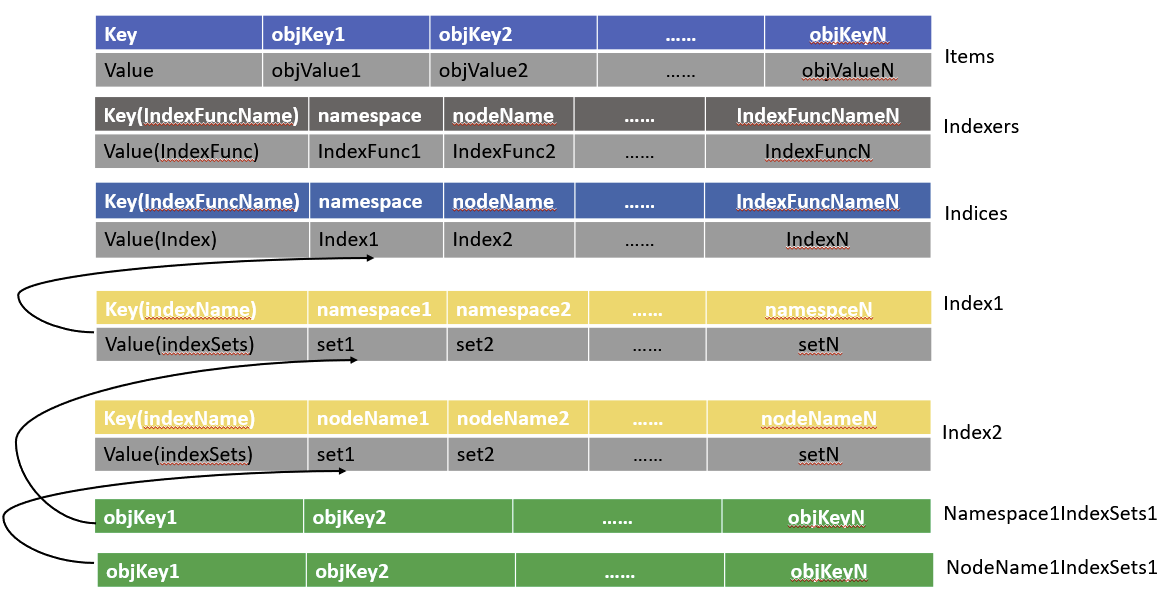

  • indexer：底层缓存，其实就是一个map记录对象，再通过一些其他map在插入删除对象是根据索引函数维护索引key如ns与对象pod的关系
  • controller：informer内部的一个controller，这个controller包含reflector：根据用户定义的ListWatch方法获取对象并更新增量队列DeltaFIFO
  • processor：知道如何处理DeltaFIFO队列中的对象，实现是sharedProcessor{} listerWatcher：知道如何list对象和watch对象的方法
  • objectType：对象类型，如deployment{}
  • resyncCheckPeriod: 给自己的controller的reflector每隔多少s<尝试>调用listener的shouldResync方法
  • defaultEventHandlerResyncPeriod：通过AddEventHandler方法给informer配置回调时如果没有配置的默认值，这个值用在processor的listener中判断是否需要进行resync，最小1s

两个字段的默认值都是来自创建factory时指定的defaultResync，当resyncPeriod < s.resyncCheckPeriod时，如果informer已经启动了才添加的EventHandler，那么调整resyncPeriod为resyncCheckPeriod，否则调整resyncCheckPeriod为resyncPeriod

sharedIndexInformer对象的关键方法：

sharedIndexInformer的Run方法

前面factory的start方法就是调用了这个Run方法

该方法初始化了controller对象并启动，同时调用processor.run启动所有的listener，用于回调用户配置的EventHandler

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49

func (s *sharedIndexInformer) Run(stopCh <-chan struct{}) {
	defer utilruntime.HandleCrash()

	//创建一个DeltaFIFO，用于shareIndexInformer.controller.reflector
    //可以看到这里把indexer即本地缓存传入，用来初始化deltaFIFO的knownObject字段
	fifo := NewDeltaFIFOWithOptions(DeltaFIFOOptions{
		KnownObjects:          s.indexer,
		EmitDeltaTypeReplaced: true,
	})

	//shareIndexInformer中的controller的配置
	cfg := &Config{
		Queue:            fifo,
		ListerWatcher:    s.listerWatcher,
		ObjectType:       s.objectType,
		FullResyncPeriod: s.resyncCheckPeriod,
		RetryOnError:     false,
		ShouldResync:     s.processor.shouldResync,// 这个shouldResync方法将被用在reflector ListAndWatch方法中判断定时时间resyncCheckPeriod到了之后该不该进行resync动作

      //一个知道如何处理从informer中的controller中的deltaFIFO pop出来的对象的方法
		Process: s.HandleDeltas,
	}

	func() {
		s.startedLock.Lock()
		defer s.startedLock.Unlock()
		// 这里New一个具体的controller
		s.controller = New(cfg)
		s.controller.(*controller).clock = s.clock
		s.started = true
	}()

	// Separate stop channel because Processor should be stopped strictly after controller
	processorStopCh := make(chan struct{})
	var wg wait.Group
	defer wg.Wait()              // Wait for Processor to stop
	defer close(processorStopCh) // Tell Processor to stop
	wg.StartWithChannel(processorStopCh, s.cacheMutationDetector.Run)
	// 调用processor.run启动所有的listener，回调用户配置的EventHandler
	wg.StartWithChannel(processorStopCh, s.processor.run)

	defer func() {
		s.startedLock.Lock()
		defer s.startedLock.Unlock()
		s.stopped = true // Don't want any new listeners
	}()
	// 启动controller
	s.controller.Run(stopCh)
}

为shareIndexInformer创建controller

创建Controller的New方法会生成一个controller对象，只初始化controller的config成员，controller的reflector成员是在Run的时候初始化：

  • 通过执行reflector.Run方法启动reflector，开启对指定对象的listAndWatch过程，获取的对象将添加到reflector的deltaFIFO中
  • 通过不断执行processLoop方法，从DeltaFIFO pop出对象，再调用reflector的Process（就是shareIndexInformer的HandleDeltas方法）处理
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

func New(c *Config) Controller {
	ctlr := &controller{
		config: *c,
		clock:  &clock.RealClock{},
	}
	return ctlr
}

//更多字段的配置是再Run的时候进行配置的
func (c *controller) Run(stopCh <-chan struct{}) {
	defer utilruntime.HandleCrash()
	go func() {
		<-stopCh
		c.config.Queue.Close()
	}()
	// 使用config创建一个Reflector
	r := NewReflector(
		c.config.ListerWatcher, // 如deployment的listWatch方法
		c.config.ObjectType,	// deployment{}
		c.config.Queue,			//DeltaFIFO
		c.config.FullResyncPeriod,	//30s
	)
	r.ShouldResync = c.config.ShouldResync //来自sharedProcessor的方法
	r.clock = c.clock

	c.reflectorMutex.Lock()
	c.reflector = r
	c.reflectorMutex.Unlock()

	var wg wait.Group
	defer wg.Wait()
	// 启动reflector，执行ListWatch方法
	wg.StartWithChannel(stopCh, r.Run)
	// 不断执行processLoop，这个方法其实就是从DeltaFIFO pop出对象，再调用reflector的Process（其实是shareIndexInformer的HandleDeltas方法）处理
	wait.Until(c.processLoop, time.Second, stopCh)
}

r.Run

1
2
3
4
5
6
7
8
9

func (r *Reflector) Run(stopCh <-chan struct{}) {
	klog.V(2).Infof("Starting reflector %s (%s) from %s", r.expectedTypeName, r.resyncPeriod, r.name)
	wait.BackoffUntil(func() {
		if err := r.ListAndWatch(stopCh); err != nil {
			utilruntime.HandleError(err)
		}
	}, r.backoffManager, true, stopCh)
	klog.V(2).Infof("Stopping reflector %s (%s) from %s", r.expectedTypeName, r.resyncPeriod, r.name)
}

controller的processLoop方法

不断执行processLoop，这个方法其实就是从DeltaFIFO pop出对象，再调用reflector的Process（其实是shareIndexInformer的HandleDeltas方法）处理

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

func (c *controller) processLoop() {
	for {
		obj, err := c.config.Queue.Pop(PopProcessFunc(c.config.Process))
		if err != nil {
			if err == ErrFIFOClosed {
				return
			}
			if c.config.RetryOnError {
				// This is the safe way to re-enqueue.
				c.config.Queue.AddIfNotPresent(obj)
			}
		}
	}
}

deltaFIFO pop出来的对象处理逻辑

先看看controller怎么处理DeltaFIFO中的对象，需要注意DeltaFIFO中的Deltas的结构，是一个slice，保存同一个对象的所有增量事件

https://www.xieys.club/images/posts/116666059-19224c00-a9cd-11eb-945c-955cce9eacd1.png

sharedIndexInformer的HandleDeltas处理从deltaFIFO pod出来的增量时，先尝试更新到本地缓存cache，更新成功的话会调用processor.distribute方法向processor中的listener添加notification，listener启动之后会不断获取notification回调用户的EventHandler方法

  • Sync: reflector list到对象时Replace到deltaFIFO时daltaType为Sync或者resync把localstrore中的对象加回到deltaFIFO
  • Added、Updated: reflector watch到对象时根据watch event type是Add还是Modify对应deltaType为Added或者Updated
  • Deleted: reflector watch到对象的watch event type是Delete或者re-list Replace到deltaFIFO时local store多出的对象以Delete的方式加入deltaFIFO
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47

func (s *sharedIndexInformer) HandleDeltas(obj interface{}) error {
	s.blockDeltas.Lock()
	defer s.blockDeltas.Unlock()

	// from oldest to newest
	for _, d := range obj.(Deltas) {
		switch d.Type {
		case Sync, Replaced, Added, Updated:
			s.cacheMutationDetector.AddObject(d.Object)
			// 对象先通过shareIndexInformer中的indexer更新到缓存
			if old, exists, err := s.indexer.Get(d.Object); err == nil && exists {
				if err := s.indexer.Update(d.Object); err != nil {
					return err
				}

				isSync := false
				switch {
				case d.Type == Sync:
					// Sync events are only propagated to listeners that requested resync
					isSync = true
				case d.Type == Replaced:
					if accessor, err := meta.Accessor(d.Object); err == nil {
						if oldAccessor, err := meta.Accessor(old); err == nil {
							// Replaced events that didn't change resourceVersion are treated as resync events
							// and only propagated to listeners that requested resync
							isSync = accessor.GetResourceVersion() == oldAccessor.GetResourceVersion()
						}
					}
				}
				// 如果informer的本地缓存更新成功，那么就调用shareProcess分发对象给用户自定义controller处理
            	// 可以看到，对EventHandler来说，本地缓存已经存在该对象就认为是update
				s.processor.distribute(updateNotification{oldObj: old, newObj: d.Object}, isSync)
			} else {
				if err := s.indexer.Add(d.Object); err != nil {
					return err
				}
				s.processor.distribute(addNotification{newObj: d.Object}, false)
			}
		case Deleted:
			if err := s.indexer.Delete(d.Object); err != nil {
				return err
			}
			s.processor.distribute(deleteNotification{oldObj: d.Object}, false)
		}
	}
	return nil
}

前面描述了shareIndexInformer内部如何从deltaFIFO取出对象更新缓存并通过processor回调用户的EventHandler，那deltaFIFO中的增量事件是怎么加进入的呢？先看看shareIndexInformer中controller中的reflector实现

r.run发起ListWatch

reflector.run将会调用指定资源的ListAndWatch方法，注意这里什么时候可能发生re-list或者re-watch：因为是通过wait.BackoffUntil不断调用ListAndWatch方法，根据 Backoff 的定时器来循环触发 ListAndWatch，直到 stopCh 关闭

  • 以ResourceVersion=0开始首次的List操作获取指定资源的全量对象，并通过reflector的syncWith方法将所有对象批量插入deltaFIFO
  • List完成之后将会更新ResourceVersion用户Watch操作，通过reflector的watchHandler方法把watch到的增量对象加入到deltaFIFO
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168

func (r *Reflector) ListAndWatch(stopCh <-chan struct{}) error {
	klog.V(3).Infof("Listing and watching %v from %s", r.expectedTypeName, r.name)
	var resourceVersion string
	//以版本号ResourceVersion，以lastSyncResourceVersion为准，如果没有的话就返回0，开始首次list
	options := metav1.ListOptions{ResourceVersion: r.relistResourceVersion()}

	if err := func() error {
		initTrace := trace.New("Reflector ListAndWatch", trace.Field{"name", r.name})
		defer initTrace.LogIfLong(10 * time.Second)
		var list runtime.Object
		var paginatedResult bool
		var err error
		listCh := make(chan struct{}, 1)
		panicCh := make(chan interface{}, 1)
		go func() {
			defer func() {
				if r := recover(); r != nil {
					panicCh <- r
				}
			}()

			pager := pager.New(pager.SimplePageFunc(func(opts metav1.ListOptions) (runtime.Object, error) {
				return r.listerWatcher.List(opts)
			}))
			switch {
			case r.WatchListPageSize != 0:
				pager.PageSize = r.WatchListPageSize
			case r.paginatedResult:

			case options.ResourceVersion != "" && options.ResourceVersion != "0":

				pager.PageSize = 0
			}
			// 获取list的结果
			list, paginatedResult, err = pager.List(context.Background(), options)
			if isExpiredError(err) {
				r.setIsLastSyncResourceVersionExpired(true)

				list, paginatedResult, err = pager.List(context.Background(), metav1.ListOptions{ResourceVersion: r.relistResourceVersion()})
			}
			close(listCh)
		}()
		select {
		case <-stopCh:
			return nil
		case r := <-panicCh:
			panic(r)
		case <-listCh:
		}
		if err != nil {
			return fmt.Errorf("%s: Failed to list %v: %v", r.name, r.expectedTypeName, err)
		}


		if options.ResourceVersion == "0" && paginatedResult {
			r.paginatedResult = true
		}

		r.setIsLastSyncResourceVersionExpired(false) // list was successful
		initTrace.Step("Objects listed")
		listMetaInterface, err := meta.ListAccessor(list)
		if err != nil {
			return fmt.Errorf("%s: Unable to understand list result %#v: %v", r.name, list, err)
		}

		// 根据结果更新版本号，用于接下来的watch
		resourceVersion = listMetaInterface.GetResourceVersion()
		initTrace.Step("Resource version extracted")
		items, err := meta.ExtractList(list)
		if err != nil {
			return fmt.Errorf("%s: Unable to understand list result %#v (%v)", r.name, list, err)
		}
		initTrace.Step("Objects extracted")

		 // 这里的syncWith是把首次list到的结果通过DeltaFIFO的Replce方法批量添加到队列
      	// 队列提供了Resync方法用于判断Replace批量插入的对象是否都pop出去了，factory/informer的WaitForCacheSync就是调用了DeltaFIFO的的Resync方法
		if err := r.syncWith(items, resourceVersion); err != nil {
			return fmt.Errorf("%s: Unable to sync list result: %v", r.name, err)
		}
		initTrace.Step("SyncWith done")
		r.setLastSyncResourceVersion(resourceVersion)
		initTrace.Step("Resource version updated")
		return nil
	}(); err != nil {
		return err
	}

	resyncerrc := make(chan error, 1)
	cancelCh := make(chan struct{})
	defer close(cancelCh)
	go func() {
		resyncCh, cleanup := r.resyncChan()
		defer func() {
			cleanup() // Call the last one written into cleanup
		}()
		for {
			select {
			case <-resyncCh:
			case <-stopCh:
				return
			case <-cancelCh:
				return
			}
			if r.ShouldResync == nil || r.ShouldResync() {
				klog.V(4).Infof("%s: forcing resync", r.name)
				if err := r.store.Resync(); err != nil {
					resyncerrc <- err
					return
				}
			}
			cleanup()
			resyncCh, cleanup = r.resyncChan()
		}
	}()

	// 以list对象中获取的ResourceVersion不断watch
	for {
		select {
		case <-stopCh:
			return nil
		default:
		}

		timeoutSeconds := int64(minWatchTimeout.Seconds() * (rand.Float64() + 1.0))
		options = metav1.ListOptions{
			ResourceVersion: resourceVersion,

			TimeoutSeconds: &timeoutSeconds,

			AllowWatchBookmarks: true,
		}

		w, err := r.listerWatcher.Watch(options)
		if err != nil {
			switch {
			case isExpiredError(err):

				klog.V(4).Infof("%s: watch of %v closed with: %v", r.name, r.expectedTypeName, err)
			case err == io.EOF:

			case err == io.ErrUnexpectedEOF:
				klog.V(1).Infof("%s: Watch for %v closed with unexpected EOF: %v", r.name, r.expectedTypeName, err)
			default:
				utilruntime.HandleError(fmt.Errorf("%s: Failed to watch %v: %v", r.name, r.expectedTypeName, err))
			}

			if utilnet.IsConnectionRefused(err) {
				time.Sleep(time.Second)
				continue
			}
			return nil
		}
		// watchhandler处理watch到的数据，即把对象根据watch.type增加到DeltaFIFO中
		if err := r.watchHandler(w, &resourceVersion, resyncerrc, stopCh); err != nil {
			if err != errorStopRequested {
				switch {
				case isExpiredError(err):

					klog.V(4).Infof("%s: watch of %v closed with: %v", r.name, r.expectedTypeName, err)
				default:
					klog.Warningf("%s: watch of %v ended with: %v", r.name, r.expectedTypeName, err)
				}
			}
			return nil
		}
	}
}

list出的对象批量插入deltaFIFO

可以看到是syncWith方法是通过调用deltaFIFO的Replace实现批量插入，具体实现见下文中deltaFIFO的实现描述

1
2
3
4
5
6
7

func (r *Reflector) syncWith(items []runtime.Object, resourceVersion string) error {
	found := make([]interface{}, 0, len(items))
	for _, item := range items {
		found = append(found, item)
	}
	return r.store.Replace(found, resourceVersion)
}

watch出的增量对象插入到deltaFIFO

watch到的对象直接根据watch到的事件类型eventType更新store（即deltaFIFO），注意这个event是api直接返回的，watch event type可能是Added、Modifyed、Deleted

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77

// watchHandler watches w and keeps *resourceVersion up to date.
func (r *Reflector) watchHandler(w watch.Interface, resourceVersion *string, errc chan error, stopCh <-chan struct{}) error {
	start := r.clock.Now()
	eventCount := 0

	defer w.Stop()

loop:
	for {
		select {
		case <-stopCh:
			return errorStopRequested
		case err := <-errc:
			return err
		case event, ok := <-w.ResultChan():
			if !ok {
				break loop
			}
			if event.Type == watch.Error {
				return apierrors.FromObject(event.Object)
			}
			if r.expectedType != nil {
				if e, a := r.expectedType, reflect.TypeOf(event.Object); e != a {
					utilruntime.HandleError(fmt.Errorf("%s: expected type %v, but watch event object had type %v", r.name, e, a))
					continue
				}
			}
			if r.expectedGVK != nil {
				if e, a := *r.expectedGVK, event.Object.GetObjectKind().GroupVersionKind(); e != a {
					utilruntime.HandleError(fmt.Errorf("%s: expected gvk %v, but watch event object had gvk %v", r.name, e, a))
					continue
				}
			}
			meta, err := meta.Accessor(event.Object)
			if err != nil {
				utilruntime.HandleError(fmt.Errorf("%s: unable to understand watch event %#v", r.name, event))
				continue
			}
			newResourceVersion := meta.GetResourceVersion()
			switch event.Type {
			case watch.Added:
				err := r.store.Add(event.Object)
				if err != nil {
					utilruntime.HandleError(fmt.Errorf("%s: unable to add watch event object (%#v) to store: %v", r.name, event.Object, err))
				}
			case watch.Modified:
				err := r.store.Update(event.Object)
				if err != nil {
					utilruntime.HandleError(fmt.Errorf("%s: unable to update watch event object (%#v) to store: %v", r.name, event.Object, err))
				}
			case watch.Deleted:
				// TODO: Will any consumers need access to the "last known
				// state", which is passed in event.Object? If so, may need
				// to change this.
				err := r.store.Delete(event.Object)
				if err != nil {
					utilruntime.HandleError(fmt.Errorf("%s: unable to delete watch event object (%#v) from store: %v", r.name, event.Object, err))
				}
			case watch.Bookmark:
				// A `Bookmark` means watch has synced here, just update the resourceVersion
			default:
				utilruntime.HandleError(fmt.Errorf("%s: unable to understand watch event %#v", r.name, event))
			}
			*resourceVersion = newResourceVersion
			r.setLastSyncResourceVersion(newResourceVersion)
			eventCount++
		}
	}

	watchDuration := r.clock.Since(start)
	if watchDuration < 1*time.Second && eventCount == 0 {
		return fmt.Errorf("very short watch: %s: Unexpected watch close - watch lasted less than a second and no items received", r.name)
	}
	klog.V(4).Infof("%s: Watch close - %v total %v items received", r.name, r.expectedTypeName, eventCount)
	return nil
}

定时触发resync

在ListAndWatch中还起了一个gorouting定时的进行resync动作

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

	resyncerrc := make(chan error, 1)
	cancelCh := make(chan struct{})
	defer close(cancelCh)
	go func() {
		//获取一个定时channel，定时的时间是创建informer factory时传入的resyncPeriod
		resyncCh, cleanup := r.resyncChan()
		defer func() {
			cleanup() // Call the last one written into cleanup
		}()
		for {
			select {
			case <-resyncCh:
			case <-stopCh:
				return
			case <-cancelCh:
				return
			}
			if r.ShouldResync == nil || r.ShouldResync() {
				klog.V(4).Infof("%s: forcing resync", r.name)
				if err := r.store.Resync(); err != nil {
					resyncerrc <- err
					return
				}
			}
			cleanup()
			resyncCh, cleanup = r.resyncChan()
		}
	}()

调用deltaFIFO的Resync方法，把底层缓存的对象全部重新添加到deltaFIFO中

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

func (f *DeltaFIFO) Resync() error {
	f.lock.Lock()
	defer f.lock.Unlock()

	if f.knownObjects == nil {
		return nil
	}

	keys := f.knownObjects.ListKeys()
	for _, k := range keys {
		if err := f.syncKeyLocked(k); err != nil {
			return err
		}
	}
	return nil
}

需要注意的是，在添加对象到deltaFIFO时会检查该队列中有没有增量没有处理完的，如果有则忽略这个对象的此次resync

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

func (f *DeltaFIFO) syncKeyLocked(key string) error {
	obj, exists, err := f.knownObjects.GetByKey(key)
	if err != nil {
		klog.Errorf("Unexpected error %v during lookup of key %v, unable to queue object for sync", err, key)
		return nil
	} else if !exists {
		klog.Infof("Key %v does not exist in known objects store, unable to queue object for sync", key)
		return nil
	}

	id, err := f.KeyOf(obj)
	if err != nil {
		return KeyError{obj, err}
	}
	// 如果deltaFIFO中该对象还有增量没有处理，则忽略以避免冲突，原因如上面注释：在同一个对象的增量列表中，排在后面的增量的object相比前面的增量应该更新才是合理的
	if len(f.items[id]) > 0 {
		return nil
	}
	// 跟deltaFIFO的Replace方法一样，都是添加一个Sync类型的增量
	if err := f.queueActionLocked(Sync, obj); err != nil {
		return fmt.Errorf("couldn't queue object: %v", err)
	}
	return nil
}

底层缓存的实现

shareIndexInformer中带有一个缓存indexer，是一个支持索引的map，优点是支持快速查询：

  • Indexer、Queue接口和cache结构体都实现了顶层的Store接口
  • cache结构体持有threadSafeStore对象，threadSafeStore是线程安全的，并且具备自定义索引查找的能力

threadSafeMap的结构如下

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

// threadSafeMap implements ThreadSafeStore
type threadSafeMap struct {
	lock  sync.RWMutex
	items map[string]interface{}

	// indexers maps a name to an IndexFunc
	indexers Indexers
	// indices maps a name to an Index
	indices Indices
}
  • items:存储具体的对象，比如key为ns/podName，value为pod{}
  • Indexers:一个map[string]IndexFunc结构，其中key为索引的名称，如’namespace’字符串，value则是一个具体的索引函数
  • Indices:一个map[string]Index结构，其中key也是索引的名称，value是一个map[string]sets.String结构，其中key是具体的namespace，如default这个ns，vlaue则是这个ns下的按照索引函数求出来的值的集合，比如default这个ns下的所有pod对象名称

索引的维护

通过在向items插入对象的过程中，遍历所有的Indexers中的索引函数，根据索引函数存储索引key到value的集合关系，以下图式结构可以很好的说明：

https://xieys.club/images/posts/116666278-5981ca00-a9cd-11eb-9570-8ee6eb447d05.png

缓存中增加对象

在向threadSafeMap的items map中增加完对象后，再通过updateIndices更新索引结构

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38

func (c *threadSafeMap) Add(key string, obj interface{}) {
	c.lock.Lock()
	defer c.lock.Unlock()
	oldObject := c.items[key]
	c.items[key] = obj
	c.updateIndices(oldObject, obj, key)
}

func (c *threadSafeMap) updateIndices(oldObj interface{}, newObj interface{}, key string) {
	// if we got an old object, we need to remove it before we add it again
	if oldObj != nil {
		// 这是一个更新操作，先删除原对象的索引记录
		c.deleteFromIndices(oldObj, key)
	}
	// 枚举所有添加的索引函数
	for name, indexFunc := range c.indexers {
		//根据索引函数计算obj对应的
		indexValues, err := indexFunc(newObj)
		if err != nil {
			panic(fmt.Errorf("unable to calculate an index entry for key %q on index %q: %v", key, name, err))
		}
		index := c.indices[name]
		if index == nil {
			index = Index{}
			c.indices[name] = index
		}
		//索引函数计算出多个value，也可能是一个，比如pod的ns就只有一个值，pod的label可能就有多个值
		for _, indexValue := range indexValues {
			//比如namespace索引，根据indexValue=default，获取default对应的集合再把当前对象插入
			set := index[indexValue]
			if set == nil {
				set = sets.String{}
				index[indexValue] = set
			}
			set.Insert(key)
		}
	}
}

IndexFunc索引函数

一个典型的索引函数MetaNamespaceIndexFunc，方便查询时可以根据namespace获取该namespace下的所有对象

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

func (f *deploymentInformer) defaultInformer(client kubernetes.Interface, resyncPeriod time.Duration) cache.SharedIndexInformer {
	return NewFilteredDeploymentInformer(client, f.namespace, resyncPeriod, cache.Indexers{cache.NamespaceIndex: cache.MetaNamespaceIndexFunc}, f.tweakListOptions)
}

// MetaNamespaceIndexFunc is a default index function that indexes based on an object's namespace
func MetaNamespaceIndexFunc(obj interface{}) ([]string, error) {
	meta, err := meta.Accessor(obj)
	if err != nil {
		return []string{""}, fmt.Errorf("object has no meta: %v", err)
	}
	return []string{meta.GetNamespace()}, nil
}

Index方法利用索引查找对象

提供利用索引来查询的能力，Index方法可以根据索引名称和对象，查询所有的关联对象

例如通过 Index(“namespace”, &metav1.ObjectMeta{Namespace: namespace})获取指定ns下的所有对象，具体可以参考tools/cache/listers.go#ListAllByNamespace

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40

func (c *threadSafeMap) Index(indexName string, obj interface{}) ([]interface{}, error) {
	c.lock.RLock()
	defer c.lock.RUnlock()

	indexFunc := c.indexers[indexName]
	if indexFunc == nil {
		return nil, fmt.Errorf("Index with name %s does not exist", indexName)
	}

	indexedValues, err := indexFunc(obj)
	if err != nil {
		return nil, err
	}
	index := c.indices[indexName]

	var storeKeySet sets.String
	//例如namespace索引
	if len(indexedValues) == 1 {
		// In majority of cases, there is exactly one value matching.
		// Optimize the most common path - deduping is not needed here.
		storeKeySet = index[indexedValues[0]]

	} else {
		//例如lable索引
		// Need to de-dupe the return list.
		// Since multiple keys are allowed, this can happen.
		storeKeySet = sets.String{}
		for _, indexedValue := range indexedValues {
			for key := range index[indexedValue] {
				storeKeySet.Insert(key)
			}
		}
	}

	list := make([]interface{}, 0, storeKeySet.Len())
	for storeKey := range storeKeySet {
		list = append(list, c.items[storeKey])
	}
	return list, nil
}

deltaFIFO实现

shareIndexInformer.controller.reflector中的deltaFIFO实现

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53

// NewDeltaFIFO方法在前面分析的sharedIndexInformer的Run方法中调用
// fifo := NewDeltaFIFO(MetaNamespaceKeyFunc, s.indexer)

func NewDeltaFIFOWithOptions(opts DeltaFIFOOptions) *DeltaFIFO {
	if opts.KeyFunction == nil {
		opts.KeyFunction = MetaNamespaceKeyFunc
	}

	f := &DeltaFIFO{
		items:        map[string]Deltas{},
		queue:        []string{},
		keyFunc:      opts.KeyFunction,
		knownObjects: opts.KnownObjects,

		emitDeltaTypeReplaced: opts.EmitDeltaTypeReplaced,
	}
	f.cond.L = &f.lock
	return f
}


type DeltaFIFO struct {

	lock sync.RWMutex
	cond sync.Cond
	//这里的Deltas是[]Delta类型
	items map[string]Deltas
	queue []string


	populated bool

	initialPopulationCount int

	keyFunc KeyFunc

	// 这个其实就是shareIndexInformer中的indexer底层缓存的引用
	knownObjects KeyListerGetter


	closed     bool
	closedLock sync.Mutex


	emitDeltaTypeReplaced bool
}

type Delta struct {
	Type   DeltaType
	Object interface{}
}

type Deltas []Delta
  • items：记录deltaFIFO中的对象，注意map的value是一个delta slice
  • queue：记录上面items中的key，维护对象的fifo顺序
  • populated：队列中是否填充过数据，LIST时调用Replace或调用Delete/Add/Update都会置为true
  • initialPopulationCount：首次List的时候获取到的数据就会调用Replace批量增加到队列，同时设置
  • initialPopulationCount为List到的对象数量，每次Pop出来会减一，用于判断是否把首次批量插入的数据都POP出去了
  • keyFunc：知道怎么从对象中解析出对应key的函数，如MetaNamespaceKeyFunc可以解析出namespace/name的形式
  • knownObjects：这个其实就是shareIndexInformer中的indexer底层缓存的引用，可以认为和etcd中的数据一致

DeltaFIFO关键的方法

向deltaFIFO批量插入对象

批量向队列插入数据的方法，注意knownObjects是informer中本地缓存indexer的引用

这里会更新deltaFIFO的initialPopulationCount为Replace list的对象总数加上list中相比knownObjects多出的对象数量。

因为Replace方法可能是reflector发生re-list的时候再次调用，这个时候就会出现knownObjects中存在的对象不在Replace list的情况（比如watch的delete事件丢失了），这个时候是把这些对象筛选出来，封装成DeletedFinalStateUnknown对象以Delete type类型再次加入到deltaFIFO中，这样最终从detaFIFO处理这个DeletedFinalStateUnknown 增量时就可以更新本地缓存并且触发reconcile。 因为这个对象最终的结构确实找不到了，所以只能用knownObjects里面的记录来封装delta，所以叫做FinalStateUnknown。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90

func (f *DeltaFIFO) Replace(list []interface{}, resourceVersion string) error {
	f.lock.Lock()
	defer f.lock.Unlock()
	keys := make(sets.String, len(list))

	// keep backwards compat for old clients
	action := Sync
	if f.emitDeltaTypeReplaced {
		action = Replaced
	}

	for _, item := range list {
		key, err := f.KeyOf(item)
		if err != nil {
			return KeyError{item, err}
		}
		keys.Insert(key)
		// 调用deltaFIFO的queueActionLocked向deltaFIFO增加一个增量
      	// 可以看到Replace添加的Delta type都是Sync
		if err := f.queueActionLocked(action, item); err != nil {
			return fmt.Errorf("couldn't enqueue object: %v", err)
		}
	}
	// 底层的缓存不应该会是nil，可以忽略这种情况
	if f.knownObjects == nil {
		// Do deletion detection against our own list.
		queuedDeletions := 0
		for k, oldItem := range f.items {
			if keys.Has(k) {
				continue
			}

			// 当knownObjects为空时，如果item中存在对象不在新来的list中，那么该对象被认为要被删除
			var deletedObj interface{}
			if n := oldItem.Newest(); n != nil {
				deletedObj = n.Object
			}
			queuedDeletions++
			if err := f.queueActionLocked(Deleted, DeletedFinalStateUnknown{k, deletedObj}); err != nil {
				return err
			}
		}

		if !f.populated {
			f.populated = true
			// While there shouldn't be any queued deletions in the initial
			// population of the queue, it's better to be on the safe side.
			f.initialPopulationCount = len(list) + queuedDeletions
		}

		return nil
	}

	// Detect deletions not already in the queue.
	// 当reflector发生re-list时，可能会出现knownObjects中存在的对象不在Replace list的情况
	knownKeys := f.knownObjects.ListKeys()
	// 记录这次替换相当于在缓存中删除多少对象
	queuedDeletions := 0
	// 枚举local store中的所有对象
	for _, k := range knownKeys {
		// 对象也在Replace list中，所以跳过
		if keys.Has(k) {
			continue
		}
		// 对象在缓存，但不在list中，说明替换操作完成后，这个对象相当于被删除了
     	// 注意这里的所谓替换，对deltaFIFO来说，是给队列中的对应对象增加一个
     	// delete增量queueActionLocked(Deleted, DeletedFinalStateUnknown{k, deletedObj})
     	// 真正删除缓存需要等到DeletedFinalStateUnknown增量被POP出来操作local store时
		deletedObj, exists, err := f.knownObjects.GetByKey(k)
		if err != nil {
			deletedObj = nil
			klog.Errorf("Unexpected error %v during lookup of key %v, placing DeleteFinalStateUnknown marker without object", err, k)
		} else if !exists {
			deletedObj = nil
			klog.Infof("Key %v does not exist in known objects store, placing DeleteFinalStateUnknown marker without object", k)
		}
		queuedDeletions++
		if err := f.queueActionLocked(Deleted, DeletedFinalStateUnknown{k, deletedObj}); err != nil {
			return err
		}
	}
	// 设置f.initialPopulationCount，该值大于0表示首次插入的对象还没有全部pop出去
    // informer WaitForCacheSync就是在等待该值为0
	if !f.populated {
		f.populated = true
		f.initialPopulationCount = len(list) + queuedDeletions
	}

	return nil
}
从deltaFIFO pop出对象

从队列中Pop出一个方法，并由函数process来处理，其实就是shareIndexInformer的HandleDeltas

每次从DeltaFIFO Pop出一个对象，f.initialPopulationCount会减一，初始值为List时的对象数量 前面的Informer的WaitForCacheSync最终就是调用了这个HasSynced方法

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39

func (f *DeltaFIFO) Pop(process PopProcessFunc) (interface{}, error) {
	f.lock.Lock()
	defer f.lock.Unlock()
	for {
		for len(f.queue) == 0 {

			if f.IsClosed() {
				return nil, ErrFIFOClosed
			}

			f.cond.Wait()
		}
		//取出队首元素
		id := f.queue[0]
		//去掉队首元素
		f.queue = f.queue[1:]
		//如果initialPopulationCount大于0，就减1
		if f.initialPopulationCount > 0 {
			f.initialPopulationCount--
		}
		item, ok := f.items[id]
		if !ok {
			// Item may have been deleted subsequently.
			continue
		}
		delete(f.items, id)
		//处理增量对象
		err := process(item)
		// 如果没有处理成功，那么就会重新加到deltaFIFO队列中
		if e, ok := err.(ErrRequeue); ok {
			f.addIfNotPresent(id, item)
			err = e.Err
		}
		// Don't need to copyDeltas here, because we're transferring
		// ownership to the caller.
		return item, err
	}
}
deltaFIFO是否同步完成

串连前面的问题：factory的WaitForCacheSync是如何等待缓存同步完成

factory的WaitForCacheSync方法调用informer的HasSync方法，继而调用deltaFIFO的HasSync方法，也就是判断从reflector list到的数据是否pop完

1
2
3
4
5
6

func (f *DeltaFIFO) HasSynced() bool {
	f.lock.Lock()
	defer f.lock.Unlock()
	return f.populated && f.initialPopulationCount == 0
}
同步local store到deltaFIFO

所谓的resync，其实就是把knownObjects即缓存中的对象全部再通过queueActionLocked(Sync, obj)加到队列

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48

func (f *DeltaFIFO) Resync() error {
	f.lock.Lock()
	defer f.lock.Unlock()

	if f.knownObjects == nil {
		return nil
	}

	keys := f.knownObjects.ListKeys()
	// 把local store中的对象都以Sync类型增量的形式重新放回到deltaFIFO
	for _, k := range keys {
		if err := f.syncKeyLocked(k); err != nil {
			return err
		}
	}
	return nil
}

func (f *DeltaFIFO) syncKeyLocked(key string) error {
	obj, exists, err := f.knownObjects.GetByKey(key)
	if err != nil {
		klog.Errorf("Unexpected error %v during lookup of key %v, unable to queue object for sync", err, key)
		return nil
	} else if !exists {
		klog.Infof("Key %v does not exist in known objects store, unable to queue object for sync", key)
		return nil
	}

	// If we are doing Resync() and there is already an event queued for that object,
	// we ignore the Resync for it. This is to avoid the race, in which the resync
	// comes with the previous value of object (since queueing an event for the object
	// doesn't trigger changing the underlying store <knownObjects>.
	id, err := f.KeyOf(obj)
	if err != nil {
		return KeyError{obj, err}
	}
	// 如上述注释，在resync时，如果deltaFIFO中该对象还存在其他delta没处理，那么忽略这次的resync
    // 因为调用queueActionLocked是增加delta是通过append的，且处理对象的增量delta时，是从oldest到newdest的
    // 所以如果某个对象还存在增量没处理，再append就可能导致后处理的delta是旧的对象
	if len(f.items[id]) > 0 {
		return nil
	}
	// 可以看到这里跟list一样，增加到deltaFIFO的是一个Sync类型的增量
	if err := f.queueActionLocked(Sync, obj); err != nil {
		return fmt.Errorf("couldn't queue object: %v", err)
	}
	return nil
}
在deltaFIFO增加一个对象

注意这里在append增量时的去重逻辑：如果连续的两个增量类型都是Deleted，那么就去掉一个（正常情况确实不会出现这样，且没必要），优先去掉前面所说的因为re-list可能导致的api与local store不一致而增加的DeletedFinalStateUnknown类型的增量

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

//在队列中给指定的对象append一个Delta
func (f *DeltaFIFO) queueActionLocked(actionType DeltaType, obj interface{}) error {
	id, err := f.KeyOf(obj)
	if err != nil {
		return KeyError{obj, err}
	}
	// 把增量append到slice的后面
	newDeltas := append(f.items[id], Delta{actionType, obj})
	// 连续的两个Deleted delta将会去掉一个
	newDeltas = dedupDeltas(newDeltas)

	if len(newDeltas) > 0 {
		// 维护queue队列
		if _, exists := f.items[id]; !exists {
			f.queue = append(f.queue, id)
		}
		f.items[id] = newDeltas
		f.cond.Broadcast()
	} else {

		delete(f.items, id)
	}
	return nil
}

当前认为只有连续的两个Delete delta才有必要去重

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

func dedupDeltas(deltas Deltas) Deltas {
	n := len(deltas)
	if n < 2 {
		return deltas
	}
	// 每次取最后两个delta来判断
	a := &deltas[n-1]
	b := &deltas[n-2]
	if out := isDup(a, b); out != nil {
		d := append(Deltas{}, deltas[:n-2]...)
		return append(d, *out)
	}
	return deltas
}

func isDup(a, b *Delta) *Delta {
	// 当前认为只有连续的两个Delete delta才有必要去重
	if out := isDeletionDup(a, b); out != nil {
		return out
	}
	// TODO: Detect other duplicate situations? Are there any?
	return nil
}

func isDeletionDup(a, b *Delta) *Delta {
	if b.Type != Deleted || a.Type != Deleted {
		return nil
	}
	// Do more sophisticated checks, or is this sufficient?
	// 优先去重DeletedFinalStateUnknown类型的Deleted delta
	if _, ok := b.Object.(DeletedFinalStateUnknown); ok {
		return a
	}
	return b
}

sharedProcessor的实现

shareIndexInformer中的sharedProcess结构，用于分发deltaFIFO的对象，回调用户配置的EventHandler方法

可以看到shareIndexInformer中的process直接通过&sharedProcessor{clock: realClock}初始化

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

func NewSharedIndexInformer(lw ListerWatcher, exampleObject runtime.Object, defaultEventHandlerResyncPeriod time.Duration, indexers Indexers) SharedIndexInformer {
	realClock := &clock.RealClock{}
	sharedIndexInformer := &sharedIndexInformer{
		// 初始化一个默认的processor
		processor:                       &sharedProcessor{clock: realClock},
		indexer:                         NewIndexer(DeletionHandlingMetaNamespaceKeyFunc, indexers),
		listerWatcher:                   lw,
		objectType:                      exampleObject,
		resyncCheckPeriod:               defaultEventHandlerResyncPeriod,
		defaultEventHandlerResyncPeriod: defaultEventHandlerResyncPeriod,
		// cacheMutationDetector：可以记录local store是否被外部修改
		cacheMutationDetector:           NewCacheMutationDetector(fmt.Sprintf("%T", exampleObject)),
		clock:                           realClock,
	}
	return sharedIndexInformer
}

如下为sharedProcessor结构：

1
2
3
4
5
6
7
8

type sharedProcessor struct {
	listenersStarted bool
	listenersLock    sync.RWMutex
	listeners        []*processorListener
	syncingListeners []*processorListener
	clock            clock.Clock
	wg               wait.Group
}
  • listenersStarted：listeners中包含的listener是否都已经启动了
  • listeners：已添加的listener列表，用来处理watch到的数据
  • syncingListeners：已添加的listener列表，用来处理list到的数据

理解listeners和syncingListeners的区别

processor可以支持listener的维度配置是否需要resync：一个informer可以配置多个EventHandler，而一个EventHandler对应processor中的一个listener，每个listener可以配置需不需要resync，如果某个listener需要resync，那么添加到deltaFIFO的Sync增量最终也只会回到对应的listener

reflector中会定时判断每一个listener是否需要进行resync，判断的依据是看配置EventHandler的时候指定的resyncPeriod，0代表该listener不需要resync，否则就每隔resyncPeriod看看是否到时间了

  • listeners：记录了informer添加的所有listener
  • syncingListeners：记录了informer中哪些listener处于sync状态

syncingListeners是listeners的子集，syncingListeners记录那些开启了resync且时间已经到达了的listener，把它们放在一个独立的slice是避免下面分析的distribute方法中把obj增加到了还不需要resync的listener中

为sharedProcessor添加listener

在sharedProcessor中添加一个listener

1
2
3
4
5
6

func (p *sharedProcessor) addListenerLocked(listener *processorListener) {
	// 同时添加到listeners和syncingListeners列表，但其实添加的是同一个对象的引用
   // 所以下面run启动的时候只需要启动listeners中listener就可以了
	p.listeners = append(p.listeners, listener)
	p.syncingListeners = append(p.syncingListeners, listener)
}

启动sharedProcessor中的listener

sharedProcessor启动所有的listener 是通过调用listener.run和listener.pop来启动一个listener，两个方法具体作用看下文processorListener说明

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20

func (p *sharedProcessor) run(stopCh <-chan struct{}) {
	func() {
		p.listenersLock.RLock()
		defer p.listenersLock.RUnlock()
		for _, listener := range p.listeners {
			// listener的run方法不断的从listener自身的缓冲区取出对象回调handler
			p.wg.Start(listener.run)
			// listener的pop方法不断的接收对象并暂存在自身的缓冲区中
			p.wg.Start(listener.pop)
		}
		p.listenersStarted = true
	}()
	<-stopCh
	p.listenersLock.RLock()
	defer p.listenersLock.RUnlock()
	for _, listener := range p.listeners {
		close(listener.addCh) // Tell .pop() to stop. .pop() will tell .run() to stop
	}
	p.wg.Wait() // Wait for all .pop() and .run() to stop
}

sharedProcessor分发对象

distribute方法是在前面介绍[deltaFIFO pop出来的对象处理逻辑]时提到的，把notification事件添加到listener中，listener如何pop出notification回调EventHandler见下文listener部分分析

当通过distribute分发从deltaFIFO获取的对象时，如果delta type是Sync，那么就会把对象交给sync listener来处理，而Sync类型的delta只能来源于下面两种情况：

  • reflector list Replace到deltaFIFO的对象：因为首次在sharedProcessor增加一个listener的时候是同时加在listeners和syncingListeners中的
  • reflector定时触发resync local store到deltaFIFO的对象：因为每次reflector调用processor的shouldResync时，都会把达到resync条件的listener筛选出来重新放到p.syncingListeners

上面两种情况都可以在p.syncingListeners中准备好listener

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15

func (p *sharedProcessor) distribute(obj interface{}, sync bool) {
	p.listenersLock.RLock()
	defer p.listenersLock.RUnlock()
	// 如果是通过reflector list Replace到deltaFIFO的对象或者reflector定时触发resync到deltaFIFO的对象，那么distribute到syncingListeners
	if sync {
		// 保证deltaFIFO Resync方法过来的delta obj只给开启了resync能力的listener
		for _, listener := range p.syncingListeners {
			listener.add(obj)
		}
	} else {
		for _, listener := range p.listeners {
			listener.add(obj)
		}
	}
}

processorListener结构

sharedProcessor中的listener具体的类型：运转逻辑就是把用户通过addCh增加的事件发送到nextCh供run方法取出回调Eventhandler，因为addCh和nectCh都是无缓冲channel，所以中间引入ringBuffer做缓存

processorListener是sharedIndexInformer调用AddEventHandler时创建并添加到sharedProcessor，对于一个Informer，可以多次调用AddEventHandler来添加多个listener

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

type processorListener struct {
	nextCh chan interface{}
	addCh  chan interface{}

	handler ResourceEventHandler

	// pendingNotifications is an unbounded ring buffer that holds all notifications not yet distributed.
	// There is one per listener, but a failing/stalled listener will have infinite pendingNotifications
	// added until we OOM.
	// TODO: This is no worse than before, since reflectors were backed by unbounded DeltaFIFOs, but
	// we should try to do something better.
	pendingNotifications buffer.RingGrowing

	// requestedResyncPeriod is how frequently the listener wants a
	// full resync from the shared informer, but modified by two
	// adjustments.  One is imposing a lower bound,
	// `minimumResyncPeriod`.  The other is another lower bound, the
	// sharedProcessor's `resyncCheckPeriod`, that is imposed (a) only
	// in AddEventHandlerWithResyncPeriod invocations made after the
	// sharedProcessor starts and (b) only if the informer does
	// resyncs at all.
	requestedResyncPeriod time.Duration
	// resyncPeriod is the threshold that will be used in the logic
	// for this listener.  This value differs from
	// requestedResyncPeriod only when the sharedIndexInformer does
	// not do resyncs, in which case the value here is zero.  The
	// actual time between resyncs depends on when the
	// sharedProcessor's `shouldResync` function is invoked and when
	// the sharedIndexInformer processes `Sync` type Delta objects.
	resyncPeriod time.Duration
	// nextResync is the earliest time the listener should get a full resync
	nextResync time.Time
	// resyncLock guards access to resyncPeriod and nextResync
	resyncLock sync.Mutex
}
  • addCh：无缓冲的chan，listener的pop方法不断从addCh取出对象丢给nextCh。addCh中的对象来源于listener的add方法，如果nextCh不能及时消费，则放入缓冲区pendingNotifications
  • nextCh：无缓冲的chan，listener的run方法不断从nextCh取出对象回调用户handler。nextCh的对象来源于addCh或者缓冲区
  • pendingNotifications：一个无容量限制的环形缓冲区，可以理解为可以无限存储的队列，用来存储deltaFIFO分发过来的消息
  • nextResync：由resyncPeriod和requestedResyncPeriod计算得出，与当前时间now比较判断listener是否该进行resync了
  • resyncPeriod：listener自身期待多长时间进行resync
  • requestedResyncPeriod：informer希望listener多长时间进行resync

在listener中添加事件

shareProcessor中的distribute方法调用的是listener的add来向addCh增加消息，注意addCh是无缓冲的chan，依赖pop不断从addCh取出数据

1
2
3
4
5

func (p *processorListener) add(notification interface{}) {
	// 虽然p.addCh是一个无缓冲的channel，但是因为listener中存在pendingNotifications(ring buffer)，所以这里并不会一直阻塞
	p.addCh <- notification
}

判断是否需要resync

如果resyncPeriod为0表示不需要resync，否则判断当前时间now是否已经超过了nextResync，是的话则返回true表示需要resync。其中nextResync在每次调用listener的shouldResync方法成功时更新

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20

func (p *sharedProcessor) shouldResync() bool {
	p.listenersLock.Lock()
	defer p.listenersLock.Unlock()
	// 这里每次都会先置空列表，保证里面记录了当前需要resync的listener
	p.syncingListeners = []*processorListener{}

	resyncNeeded := false
	now := p.clock.Now()
	for _, listener := range p.listeners {
		// need to loop through all the listeners to see if they need to resync so we can prepare any
		// listeners that are going to be resyncing.
		if listener.shouldResync(now) {
			resyncNeeded = true
			//// 达到resync条件的listener被加入syncingListeners
			p.syncingListeners = append(p.syncingListeners, listener)
			listener.determineNextResync(now)
		}
	}
	return resyncNeeded
}

listener的run方法回调EventHandler

listener的run方法不断的从nextCh中获取notification，并根据notification的类型来调用用户自定的EventHandler

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

func (p *processorListener) run() {
	// this call blocks until the channel is closed.  When a panic happens during the notification
	// we will catch it, **the offending item will be skipped!**, and after a short delay (one second)
	// the next notification will be attempted.  This is usually better than the alternative of never
	// delivering again.
	stopCh := make(chan struct{})
	wait.Until(func() {
		for next := range p.nextCh {
			switch notification := next.(type) {
			case updateNotification:
				// 回调用户配置的handler
				p.handler.OnUpdate(notification.oldObj, notification.newObj)
			case addNotification:
				p.handler.OnAdd(notification.newObj)
			case deleteNotification:
				p.handler.OnDelete(notification.oldObj)
			default:
				utilruntime.HandleError(fmt.Errorf("unrecognized notification: %T", next))
			}
		}
		// the only way to get here is if the p.nextCh is empty and closed
		close(stopCh)
	}, 1*time.Second, stopCh)
}

addCh到nextCh的对象传递

listener中pop方法的逻辑相对比较绕，最终目的就是把分发到addCh的数据从nextCh或者pendingNotifications取出来

notification变量记录下一次要被放到p.nextCh供pop方法取出的对象,开始seletct时必然只有case2可能ready Case2做的事可以描述为：从p.addCh获取对象，如果临时变量notification还是nil，说明需要往notification赋值，供case1推送到p.nextCh 如果notification已经有值了，那个当前从p.addCh取出的值要先放到环形缓冲区中

Case1做的事可以描述为：看看能不能把临时变量notification推送到nextCh（nil chan会阻塞在读写操作上），可以写的话，说明这个nextCh是p.nextCh，写成功之后，需要从缓存中取出一个对象放到notification为下次执行这个case做准备，如果缓存是空的，通过把nextCh chan设置为nil来禁用case1，以便case2位notification赋值

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

func (p *processorListener) pop() {
	defer utilruntime.HandleCrash()
	defer close(p.nextCh) // Tell .run() to stop
	//nextCh没有利用make初始化，将阻塞在读和写上
	var nextCh chan<- interface{}
	//notification初始值为nil
	var notification interface{}
	for {
		select {
		// 执行这个case，相当于给p.nextCh添加来自p.addCh的内容
		case nextCh <- notification:
			// Notification dispatched
			var ok bool
			//前面的notification已经加到p.nextCh了， 为下一次这个case再次ready做准备
			notification, ok = p.pendingNotifications.ReadOne()
			if !ok { // Nothing to pop
				nextCh = nil // Disable this select case
			}
		//第一次select只有走这个case
		case notificationToAdd, ok := <-p.addCh:
			if !ok {
				return
			}
			if notification == nil { // No notification to pop (and pendingNotifications is empty)
				// Optimize the case - skip adding to pendingNotifications
				//为notification赋值
				notification = notificationToAdd
				//唤醒第一个case
				nextCh = p.nextCh
			} else { // There is already a notification waiting to be dispatched
				//select没有命中第一个case，那么notification就没有被消耗，那么把从p.addCh获取的对象加到缓存中
				p.pendingNotifications.WriteOne(notificationToAdd)
			}
		}
	}
}
更新于 2021-08-01
阅读原始文档
 kubernetes
返回 | 主页
